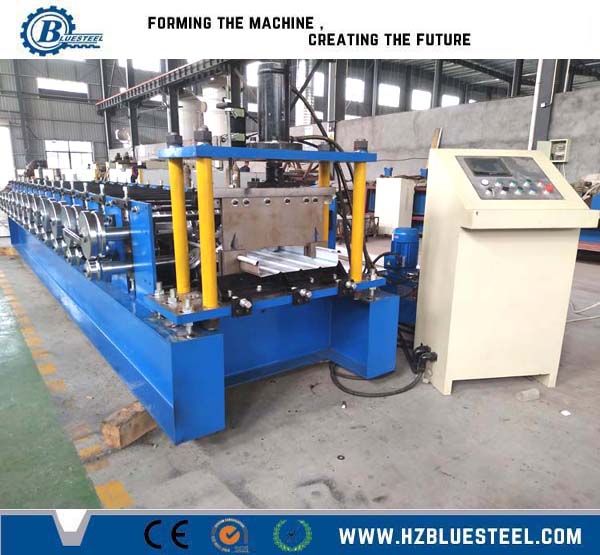

Bemo Sheet Forming Machine

Features:

As the customers’ requirement, the line can be designed as any profile, such as the roof, cladding.

Line Specification

Suitable Material:                    Thickness: 0.40-0.70mm, width as the design

Decoiler:                                  5T/8T/10T decoiler

Panel Run Out:                        Run Out Table/ 12m Auto Stacker

Total Power:                            About 20 KW up to final design

Total Installation Size:             (30-60) X 4 m up to final design

Line Components:

5T/8T/10T decoiler, Guiding Device, Auto Pre-cutting Device, Forming System, Hydraulic Cutting Device, Run Out Table/ 12m Auto Stacker, Hydrau
lic Station, PLC Control Box, Movable Control Unit, Safety Cover(optional)

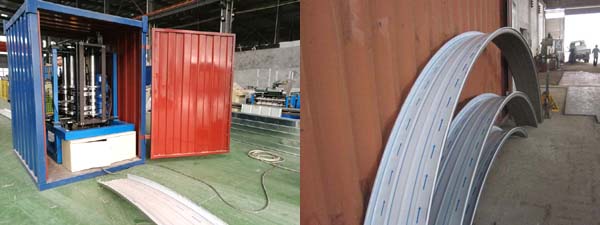

Curving Machine & Product

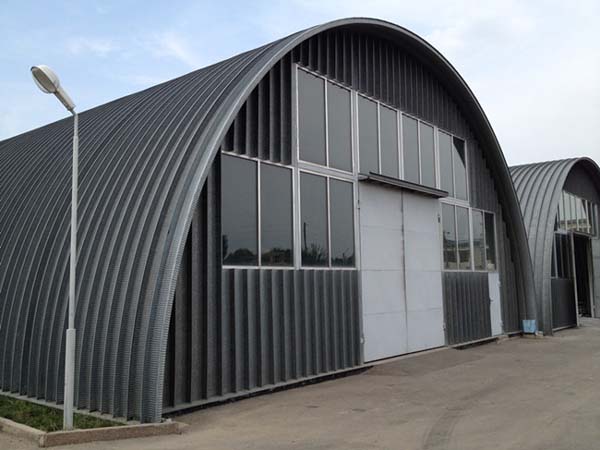

Sheet Application
