cut to length line

1. General introduction of cut to length line for metal steel coil

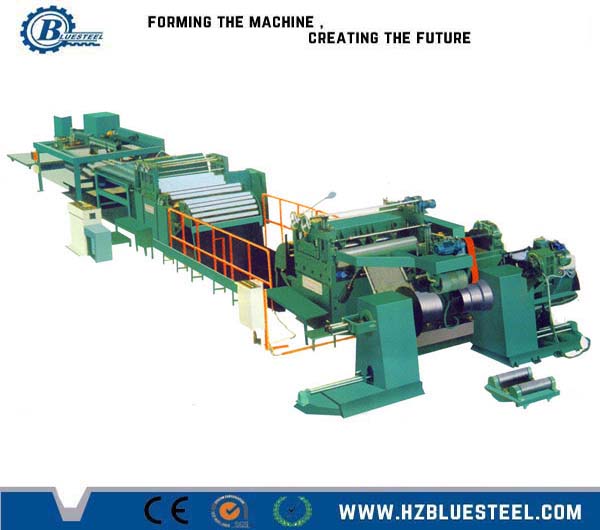

     Our CNC automatic cut-to-length production line is high-speed and precise with workstations for uncoiling, straightening, measuring, cross-cutting to length and folding. The machine consists of feeding truck, assisting support, decoiler, hydraulic shear, leveler, stop block, encoder scale, plate shearing machine, conveying table, pneumatic stacker, output trolley, hydraulic system and so on. The whole line is controlled by PLC with computer display. We mainly apply computer-control system of brands Mitsubishi, Yaskawa, Siemens, Baumueller, Delta, and Schneider. The thickness for material can be from 0.2MM to 25MM, width from 600MM to 2500MM, load weight above 25T, cutting precision 0.5MM/M, line speed 60M/Min. We can also add functions such as collecting and coating according to customer’s need. This line is highly automatic with good straightening effect, précising cutting, efficient production, reliable performance, easy operation and maintenance. In order to meet different needs.
