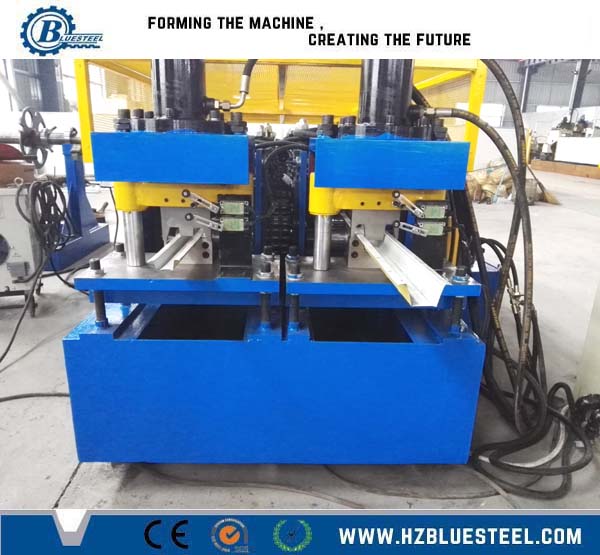

Stud & Track Roll Forming Machine

Features:

As the customers’ requirement, the line can be designed as any profile, such as the roof, cladding.

Line Specification

Suitable Material:                    Thickness: 0.30-0.90mm, width as the design

Decoiler:                                  3T/5T/8T/10T decoiler

Forming Station:                     10-30 stations up to the profile

Forming Speed:                       Max 30m/min

Panel Run Out:                        Supporter Table/ 12m Auto Stacker

Total Power:                            About 8-15 KW up to final design

Total Installation Size:             (30-60) X 4 m up to final design

Line Components:

3T/5T/8T/10T decoiler, Guiding Device, Auto Pre-cutting Device, Forming System, Hydraulic Cutting Device, Run Out Table/ 12m Auto Stacker, Hydraulic Station, PLC Control Box, Movable Control Unit, Safety Cover(optional)

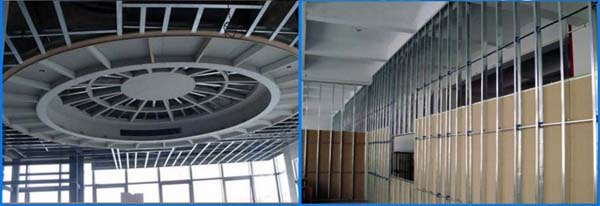

Product Application
