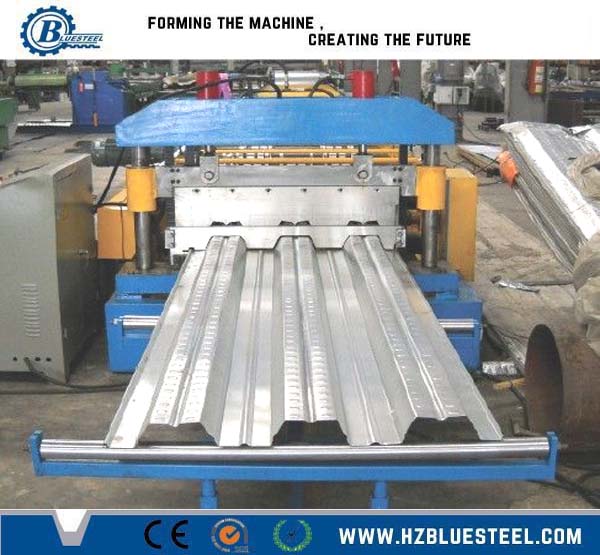

Steel Floor Decking Machine

Features:

The floor deck panel is forming from GI steel to instead of traditional mould which is more strange, quick construction. It is widely using in many industries.

The floor deck forming line can forms continuously and quickly.

Line Specification

Material:                               Thickness: 0.7-1.2mm, width as design

Decoiler:                               5T/8T/10T Decoiler

Forming Station:                  15-50 stations up to the profile

Forming Speed:                    Max 25 m/min

Panel Run Out:                     Run Out Table/Auto Stacker

Total Power:                         About 30 KW up to final design

Total Installation Size:          (25-60) X 4 m up to final design

Line Components:

5T/8T/10T Decoiler, Guiding Device, Auto Pre-cutting Device, Forming System, Hydraulic Cutting Device, Run Out Table/Auto Stacker, Hydraulic Station, PLC Control Box, Movable Control Box, Safety Cover(option)

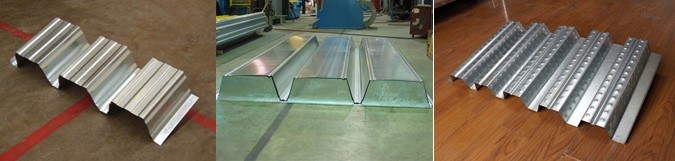

Panel Photos

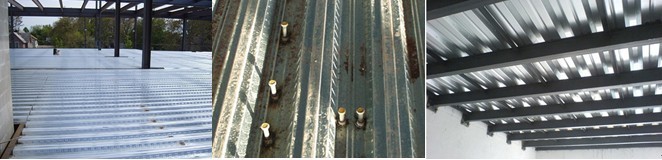

Engineering photos
