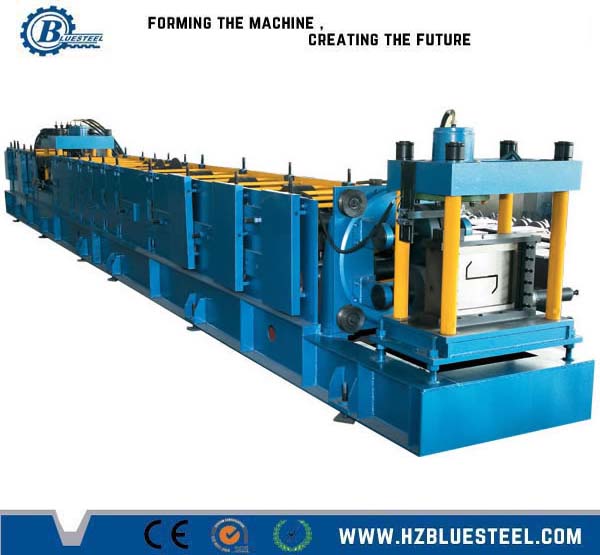

z purlin forming machine
Features:
Purlin is widely using in industry building. The line can forms C and Z shapes, just change the forming process within 15 minutes. And the machine capacity is much high than normal machine.

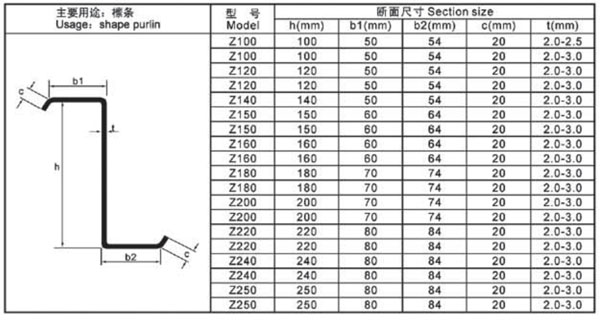

Line Specification
Material: Thickness: 1.5-3.0mm, width as design
Decoiler: 3T/5T Decoiler
Forming Speed: Max 25 m/min
Panel Run Out: Run Out Table/Auto Stacker
Total Power: About 30 KW up to final design
Total Installation Size: 25 X 3 m up to final design

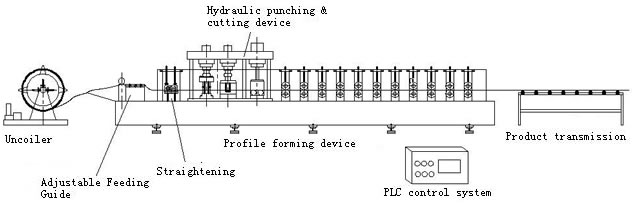

Line Components:
3T/5T Decoiler
Guiding Device
Leveling Device
Forming System
Punching Device
Hydraulic Cutting Device
Run Out Table/Auto Stacker
Hydraulic Station
PLC Control Box
Movable Control Box
Safety Cover(optional)
