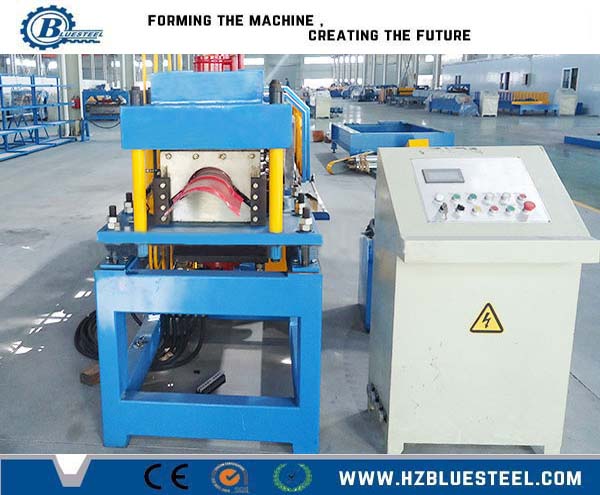

Step Ridge Cap Machine

Features:

The ridge cap panel is matching with the roof tile, and can have a nice appearance.

Line Specification

Suitable Material:         Thickness: 0.4-0.6mm PPGI/AL, width as the design

Step Length:                100-400mm

Decoiler:                       2T/3T Decoiler

Forming Station:           5-15 stations up to the profile

Forming Speed:            Max 20 m/min

Max Working Speed:    2-3M/min

Panel Run Out:             Run Out Table

Total Power:                 About 10 KW up to final design

Total Installation Size: (15-25) X 2 m up to final design

Line Components:

2T/3T Decoiler, Guiding Device, Forming System, Hydraulic Pressing Device, Hydraulic Cutting Device, Run Out Table, Hydraulic Station, PLC Control Box, Movable Control Box, Safety Cover(optional)

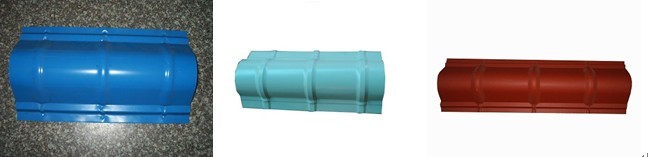

Panel Photos
