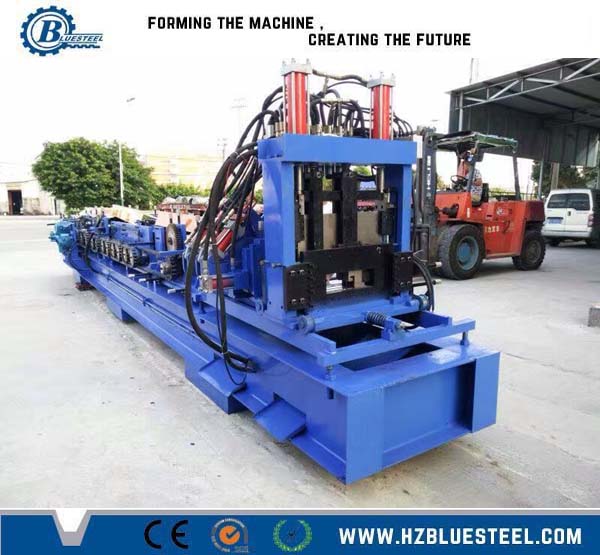

c purlin forming machine

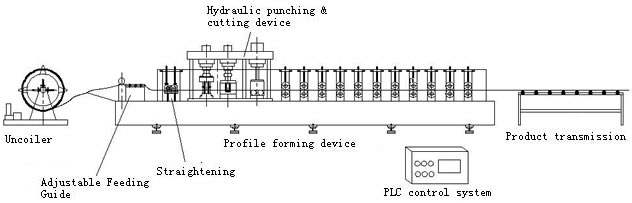

Work Flow

Features:

Purlin is widely using in industry building. The line can forms C and Z shapes, just change the forming process within 15 minutes. And the machine capacity is much high than normal machine.

Line Specification

Material:                         Thickness: 1.5-3.0mm, width as design

Decoiler:                         3T/5T Decoiler

Forming Speed:              Max 25 m/min

Panel Run Out:               Run Out Table/Auto Stacker

Total Power:                   About 30 KW up to final design

Total Installation Size:    25 X 3 m up to final design

Line Components:

3T/5T Decoiler

Guiding Device

Leveling Device

Forming System

Punching Device

Hydraulic Cutting Device

Run Out Table/Auto Stacker

Hydraulic Station

PLC Control Box

Movable Control Box

Safety Cover(optional)
