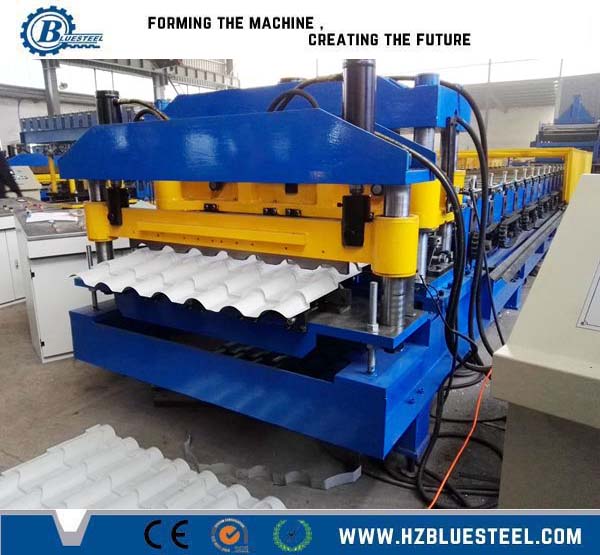

Step Tile Forming Machine
| technical specification | ||
| main systems | ||
| 1 | decoiler | feeding material by the strength yielded by roller part |
| 2 | roll forming system | form the profile you want |
| 3 | cutter | cut the sheet at fixed length |
| 4 | PLC | set length ,pieces and control the producing |
| 5 | run out table | support the finished sheet |
| 6 | hydraulic station and motor | supply the power |
| components for choice | ||
| 1 | hydraulic decoiler | |
| 2 | safety cover | for safety |
| 3 | auto run out table | support and move the finished product |
| main parameters | ||
| 1 | feeding material | color steel coil, aluminum,GI,PPGI |
| 2 | material thickness | 03-0.7mm |
| 3 | material yield stress | 230~550mpa |

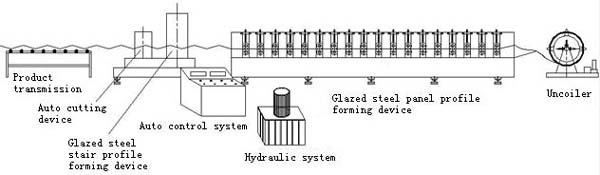

Work Flow

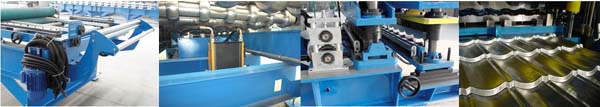

Line Parts

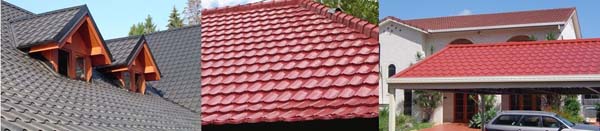

Sheet Application

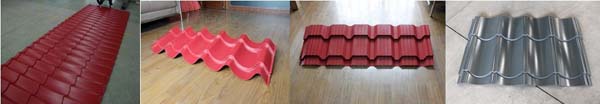

Panel Photos
